12V Relay thiab Fuse Box Qhia: Ua kom tiav Circuit Court tiv thaiv 2025

Nyob rau hauv ib qho 12V hluav taws xob system, ob qho khoom ua haujlwm ua tus saib xyuas ntsiag to. Los ntawm kev cai tawm - cov tsheb thauj mus los rau lub nkoj ua haujlwm, relays thiab fuses tiv thaiv kev ua haujlwm thiab kev nyab xeeb.

Lawv muaj cov haujlwm sib txawv, tab sis lawv ua haujlwm ua ke zoo kawg nkaus. Kev nkag siab tias lawv ua hauj lwm ua ke li cas yog qhov tseem ceeb rau kev tsim kom muaj kev ruaj ntseg hluav taws xob.

Xav txog tus relay ua tus thawj tswj hwm. Xav txog lub fuse ua tus neeg saib xyuas kev ruaj ntseg. Tus thawj coj muab xaj kom pib hnyav- cov dej num. Tus neeg saib xyuas kev ruaj ntseg ua kom cov haujlwm ntawd nyob hauv qhov txwv tsis pub muaj kev nyab xeeb. Yog tias muaj qee yam tsis zoo, tus neeg saib xyuas kaw txhua yam.

Lub 12V relay thiab lub thawv fuse zoo li lub chaw ua haujlwm hauv nruab nrab. Qhov no yog qhov uas tus thawj tswj hwm thiab tus neeg saib xyuas kev ruaj ntseg ua haujlwm ua ke. Lawv tsim lub hub zoo thiab tiv thaiv rau tag nrho koj cov khoom siv hluav taws xob.

Vim li cas Siab -Power Accessories Xav Tau Ntau

Koj tsis tuaj yeem ua haujlwm siab - cov khoom siv tam sim no los ntawm cov keyboards me me. Cov khoom siv xws li lub teeb tuav lossis cov kiv cua txias muaj zog rub lub zog ntau dhau. Cov kev hloov hauv cov kev sib cuag sab hauv yuav sai sai overheat. Lawv yuav yaj thiab poob.

Qhov no yog qhov chaw relay ua qhov tseem ceeb. Nws tso cai rau me me, qis-tam sim no hloov pauv yam xyuam xim tswj qhov loj dua, siab - tam sim no Circuit Court.

Lub tswv yim tseem ceeb: Tswj thiab kev nyab xeeb

Lub tswvyim yog yooj yim. Relays muab kev tswj hwm. Fuses muab kev nyab xeeb.

Lub relay yog ib qho chaw taws teeb - tswj kev hloov. Lub fuse yog ib yam khoom siv kev nyab xeeb. Ib tug tsis tuaj yeem ua haujlwm ntawm lwm tus. Lub zog hluav taws xob xav tau ob qho tib si ua haujlwm ua ke zoo kawg nkaus.

Kev Sib Koom Tes Tseem Ceeb: Deconstructing Interaction

Yuav kom paub txog 12V kev xaim, koj xav tau ntau dua li cov ntsiab lus yooj yim. Koj yuav tsum nkag siab tias cov khoom no cuam tshuam li cas. Qhov kev paub no cais kev ntxhov siab, tsis ua haujlwm - kev teeb tsa los ntawm cov kws tshaj lij, txhim khu kev qha.

Peb yuav rhuav tshem dab tsi fuses thiab relays ua tus kheej. Tom qab ntawd peb mam li taug qab yuav ua li cas hluav taws xob ntws los saib seb lawv ua haujlwm ua ke hauv ib lub voj voog ua tiav.

Lub Fuse: Koj Circuit's Protector

Lub fuse muaj ib txoj haujlwm. Nws tiv thaiv cov xaim thiab cov khoom siv los ntawm kev puas tsuaj los ntawm hluav taws xob ntau dhau.

Ntau dhau tam sim no tuaj yeem tshwm sim ob txoj hauv kev. Ib qho overload tshwm sim thaum lub cuab yeej rub tawm tam sim no ntau dua li qhov yuav tsum tau ua. Qhov no yuav tshwm sim nrog lub cev muaj zog. Ib qho luv luv tshwm sim thaum lub hwj chim pom txoj hauv kev tsis xav tau ncaj qha mus rau hauv av.

Ib lub fuse muaj cov hlau nplaum uas ua tau zoo. Cov sawb no yog tsim los rau yaj thiab tawg lub voj voog thaum tam sim no tshaj nws qhov ntsuas amperage. Lub fuse txi nws tus kheej. Qhov kev ua no tam sim ntawd nres hluav taws xob los ntawm kev ntws. Nws tiv thaiv qhov hluav taws kub los yog kev puas tsuaj rau cov khoom tsis ua haujlwm.

Automotive hniav fuses ua raws li cov qauv ISO 8820. Qhov no ua kom zoo thiab ua rau lawv hloov pauv tau. Cov qauv pab txheeb xyuas lawv raws qhov loj thiab xim.

Tus Relay: Tus Tsawg-Tam sim no tus thawj coj

Ib tug relay yog ib tug electromechanical hloov. Nws siv me me tam sim no los tswj qhov sib cais, siab - tam sim no Circuit Court.

Lub mechanism yog ingenious. Ib qho me me tswj Circuit Court energizes electromagnet hu ua coil. Qhov no magnetic teb rub ib tug lever. Lub zog kaw hnyav -lub luag haujlwm sab hauv. Qhov no ua tiav qhov siab - fais fab Circuit Court. Cov tam sim no loj tuaj yeem ntws mus rau cov khoom siv ntxiv.

Feem ntau tus qauv 12V automotive relays siv tus pin layout. Cov pins feem ntau raug suav ncaj qha rau ntawm tus relay rooj plaub.

Pin 30:Lub zog nkag. Qhov no yog lub ntsiab 12V + kev sib txuas los ntawm lub roj teeb, feem ntau yog los ntawm fuse.

Pin 87:Fais fab tso zis. Qhov no txuas mus rau lub davhlau ya nyob twg zoo ntawm koj cov khoom siv.

Pin 85:Coil av. Qhov no txuas lub relay sab hauv coil mus rau lub tsheb chassis hauv av.

Pin 86:Coil Trigger. Qhov no tau txais 12V + teeb liab los ntawm koj qhov qis - dashboard hloov tam sim no.

Synergy nyob rau hauv Action: Tracing ib Circuit Court

Cia peb taug qab txoj kev hluav taws xob ua tiav. Qhov no qhia tau hais tias lub relay thiab fuse kev sib tshuam.

Lub zog hluav taws xob pib ntawm lub roj teeb qhov zoo ntawm lub davhlau ya nyob twg. Ib qho hnyav- ntsuas hlau khiav ntawm lub roj teeb mus rau lub fuse. Los ntawm lub fuse, cov hlau txuas ntxiv mus rau relay tus Pin 30. Qhov no yog lub xeev "npaj". Siab- lub zog tam sim no tos ntawm tus relay.

Nyob rau tib lub sijhawm, tswj Circuit Court tos rau koj cov lus txib. Thaum koj tig lub dashboard hloov, me me 12V + teeb liab tawm ntawm qhov hloov mus rau tus pin 86. Pin 85 twb txuas nrog hauv av. Qhov no ua kom tiav cov tswj Circuit Court.

Lub zog coil tsim ib qho chaw sib nqus. Qhov no kaw qhov hloov sab hauv ntawm Pin 30 thiab Pin 87. Lub siab - tam sim no lub zog tseem tos ntawm Pin 30. Tam sim no nws ntws tawm ntawm Pin 87, los ntawm kev xaim, thiab rau koj cov khoom siv ntxiv. Qhov no powers nws.

Lub fuse zaum ua ntej lub relay ntawm lub hwj chim Circuit Court. Nws tiv thaiv txhua yam hauv qab dej. Qhov no suav nrog cov xaim hluav taws xob, lub relay tus neeg sab hauv, thiab cov khoom siv nws tus kheej.

Lub Evolution ntawm Integration: Integrated Box

Yav dhau los, ntxiv cov khoom siv txhais tau tias lub vev xaib tsis zoo ntawm qhov chaw. Ib tus neeg inline fuse tuav thiab xoob relays screwed rau firewalls tsim teeb meem. Txoj kev no feem ntau ua tsis tiav, nyuaj rau kev daws teeb meem, thiab saib tsis muaj kev tshaj lij.

Cov kev daws teeb meem niaj hnub no yog kev sib koom ua ke 12V relay thiab lub thawv fuse. Cov khoom siv no sib txuas ntau lub qhov hluav taws xob sib txuas thiab cov fuse qhov sib txuas rau hauv ib lub tsev cog khoom. Nws tseem hu ua automotive fuse thaiv nrog ua nyob rau hauv relay.

Cov chav sib xyaw ua ke no muab cov txiaj ntsig tseem ceeb. Lawv txhawb nqa txhua qhov haujlwm hluav taws xob.

Advantage 1: Simplified Wiring

Qhov txiaj ntsig loj tshaj plaws yog kev xaim yooj yim dua. Es tsis txhob khiav kaum ob ntawm tus kheej lub zog thiab hauv av xaim, koj khiav ib lub tswv yim tseem ceeb ntawm lub zog thiab ib lub ntsiab lus hauv av rau lub thawv.

Qhov "busbar" tsim no faib lub zog sab hauv rau txhua qhov fuses thiab relays. Koj tsuas yog txuas koj tus kheej cov keyboards thiab cov khoom siv ntxiv rau cov cim qhia meej ntawm lub thawv.

Qhov no ua rau txo cov ntsiab lus sib txuas. Cov ntsiab lus txuas yog qhov feem ntau ntawm cov hluav taws xob tsis ua haujlwm. Nws txo clutter thiab ua rau tag nrho cov installation huv si thiab yooj yim to taub.

Advantage 2: Centralized Maintenance

Kev daws teeb meem tsis sib haum xeeb yog npau suav phem. Nrog rau lub thawv sib xyaw, txhua lub fuse thiab relay rau koj cov khoom siv yog nyob rau hauv ib qho kev xav, nkag mus rau qhov chaw.

Thaum lub voj voog tsis ua haujlwm, koj tsis txhob plob hav zoov hauv qab dashboard lossis raws tus ncej rau lub fuse zais cia. Koj mus ncaj nraim mus rau lub hauv paus.

Qhov no yog lub hauv paus ntsiab lus ntawm kev daws teeb meem hauv nruab nrab hluav taws xob. Daim duab qhia lub hau kom meej meej qhia rau koj tias qhov twg fuse thiab relay sib raug rau cov khoom siv twg. Qhov no hloov qhov kev tshawb fawb ntev mus rau hauv 30-thib ob kho.

Advantage 3: Txhim khu kev ruaj ntseg thiab kev ntseeg siab

Txoj hlua xoob yog qhov muaj kev nyab xeeb. Tus kheej connectors yog susceptible rau ya raws, corrosion, thiab kev co. Cov no tuaj yeem ua rau muaj kev sib txuas tsis sib xws lossis luv luv.

Ntau lub niaj hnub relay thiab fuse lub thawv yog tsim los ua huab cua tsis zoo. Lawv muaj gaskets thiab seals uas tiv thaiv cov khoom sab hauv los ntawm dej, plua plav, thiab av.

Los ntawm kev sib koom ua ke hauv kev ruaj ntseg vaj tse, cov thawv no tsim kom muaj zog dua thiab kev co- tiv thaiv hluav taws xob. Qhov no yog qhov tseem ceeb rau cov tsheb uas pom cov kev pabcuam ntxhib ntawm lossis tawm ntawm txoj kev.

Advantage 4: Professional Finish thiab Scalability

Ib qho kev sib txuas sib txuas thiab lub thawv fuse muab kev huv, kev ua tiav. Nws tsom iav OEM zoo. Nws qhia txog kev saib xyuas thiab kev npaj hauv koj lub tsev.

Cov thawv no kuj tuaj yeem ua tau. Yog tias koj nruab ib lub thawv 6-circuit tab sis tsuas yog siv plaub lub voj voog thawj zaug, ntxiv ob qho khoom ntxiv tom qab yog qhov yooj yim heev. Lub infrastructure twb nyob rau hauv qhov chaw.

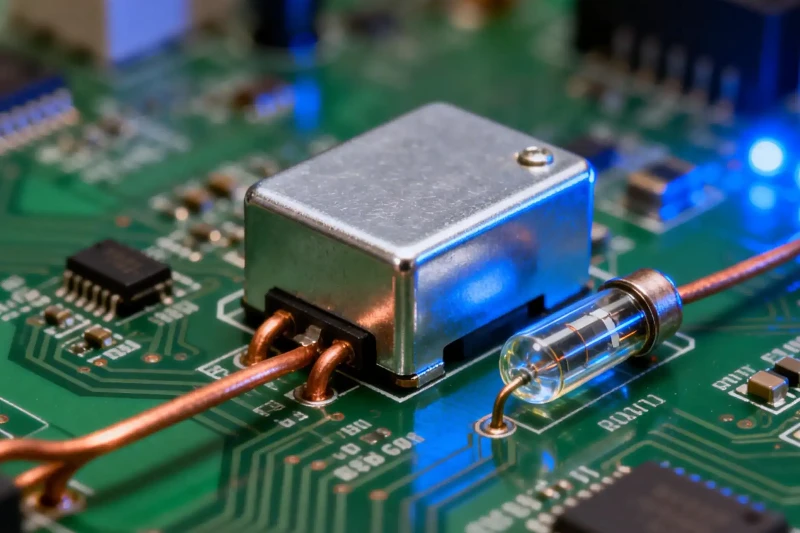

Wiring Demystified: Phau Ntawv Qhia Txog Tswv Yim

Kev txhais txoj kev xav rau hauv kev xyaum tuaj yeem ntshai. Phau ntawv qhia no qhia meej, kauj ruam - los ntawm - cov txheej txheem rau xaim ib qho kev sib txuas lus thoob ntiaj teb thiab lub thawv fuse. Nws yuav siv qhov tsis paub tawm ntawm 12v relay thaiv daim duab nrog fuse.

Ua ntej koj Pib: Cov Cuab Yeej & Kev Nyab Xeeb

Sau cov cuab yeej thiab cov khoom tsim nyog ua ntej. Qhov no ua rau txoj haujlwm smoother thiab nyab xeeb. Ib txwm ua qhov tseem ceeb ntawm kev nyab xeeb.

Kev nyab xeebUa ntej:Tshem tawm lub davhlau ya nyob twg tsis zoo ntawm koj lub tsheb lub roj teeb ua ntej kov cov xaim. Qhov no tiv thaiv kev sib tsoo luv luv. Nws tiv thaiv koj thiab koj lub tsheb cov khoom siv hluav taws xob.

Cov cuab yeej thiab cov ntaub ntawv uas yuav tsum tau muaj:

Hlau Strippers / Cutters

High-Quality Ratcheting Crimper rau insulated/non-insulated terminals

Digital Multimeter

Socket / Wrench Set

Drill thiab Bits

Screwdrivers

Kub Phom

Appropriate Gauge TXL or GXL Automotive Wire

Nplhaib Terminals, Spade Terminals, thiab lwm yam.

Thaum tshav kub kub Shrink Tubing

Zip Ties thiab Hlau Loom

Kauj ruam -los ntawm - Kauj Ruam Kev Qhia

Cov lus qhia no suav nrog universal 6-slot relay thiab fuse box. Cov ntsiab cai siv rau feem ntau cov qauv zoo sib xws.

Kauj Ruam 1: Mount lub thawv

Xaiv qhov chaw uas muaj kev ruaj ntseg thiab tiv thaiv los ntawm cov cua kub ntau dhau thiab cov tshuaj tsuag dej ncaj qha. Xyuas kom tseeb tias nws siv tau rau kev saib xyuas yav tom ntej. Mount lub thawv kom ruaj khov rau ntawm qhov chaw uas siv bolts lossis screws.

Kauj ruam 2: TxuasMainLub zog thiab hauv av

Siv qhov ntsuas qhov loj me me (feem ntau 8 AWG lossis 6 AWG, kos koj lub thawv cov lus qhia). Khiav ib lub hwj chim xaim los ntawm lub roj teeb lub davhlau ya nyob twg zoo mus rau lub ntsiab fais fab input stud ntawm lub thawv fuse. Nruab tus tswv fuse lossis Circuit Court breaker ze ntawm lub roj teeb ntawm kab no. Khiav ib lub xov hlau zoo sib xws los ntawm lub thawv lub hauv paus hauv av kom huv si, pleev xim rau - qhov chaw dawb ntawm lub tsheb lub chassis lossis lub tsheb npav hauv av tshwj xeeb.

Kauj ruam 3: Wiring lubRelayTswj Cov Hlau

Rau txhua qhov hluav taws xob uas koj npaj yuav siv, khiav lub ntsuas hluav taws xob me me (18-16 AWG feem ntau txaus) los ntawm koj lub dashboard hloov qhov tso zis mus rau qhov sib txuas relay trigger input davhlau ya nyob twg ntawm lub thawv. Cov terminals no txuas rau Pin 86 ntawm cov relays.

Kauj Ruam 4: Txuas lub Accessory Wires

Khiav ib lub xov hlau los ntawm cov hlau lead zoo ntawm koj cov khoom siv (xws li koj lub teeb bar) mus rau qhov sib txuas fused tso zis davhlau ya nyob twg ntawm lub thawv. Lub davhlau ya nyob twg txuas rau Pin 87 ntawm tus relay. Siv lub ntsuas hluav taws xob tsim nyog rau kev kos amperage ntawm koj cov khoom siv. Txuas cov khoom siv tsis zoo rau lub chassis hauv av nyob ze nws qhov chaw mounting.

Kauj ruam 5: Xaiv thiab txhim kho Fuses thiab Relays

Xam qhov tseeb fuse amperage rau txhua lub voj voog. Ib txoj cai yooj yim yog coj cov khoom siv lub zog thiab faib nws los ntawm 12 volts kom tau txais cov amps. Tom qab ntawd xaiv tus txheej txheem fuse tom ntej. Piv txwv li, lub teeb 120-watt kos 10 amps (120/12=10), yog li 15A fuse yog qhov kev xaiv nyab xeeb. Ntxig lub fuse kom raug thiab tus qauv 12V relay rau txhua lub voj voog uas koj tau xaim.

Thaum peb nruab cov no, peb ib txwm tsim ib daim ntawv yooj yim rau sab hauv lub hau. Daim ntawv qhia no uas relay thiab fuse sib haum rau cov khoom siv twg. Nws txuag lub sij hawm loj heev thaum daws teeb meem yav tom ntej.

Nkag siab Koj Daim Ntawv Qhia Txuas Txuas

Feem ntau cov relay thiab fuse thawv tuaj nrog 12v relay thaiv daim duab nrog fuse. Siv sijhawm los nkag siab. Nws siv cov cim cim los qhia cov tswv yim tseem ceeb ntawm lub zog, hauv av, cov khoom siv hluav taws xob, thiab cov fused outputs. Kev kawm nyeem daim duab qhia no pab koj txhim kho thiab kho koj lub cev kom zoo.

Lub Art of Troubleshooting: Ib txoj hauv kev zoo

Ib qho khoom siv uas dheev nres ua haujlwm tuaj yeem ntxhov siab. Txawm li cas los xij, nrog rau kev sib txuas lus sib txuas thiab fuse lub thawv thiab cov txheej txheem kuaj pom tseeb, koj tuaj yeem txheeb xyuas qhov txhaum sai. Tus yuam sij yog xav zoo li tus kws tshaj lij. Cia cov tsos mob coj koj.

Thawj lo lus nug: Fuse lossis Relay?

Thawj thiab qhov tseem ceeb tshaj plaws ntawm kev kuaj mob yog qhov koj hnov ​​thaum koj qhib qhov hloov.

Koj puas hnov ​​qhov txawv "nias" ntawm lub thawv relay? Los yog tsuas muaj kev ntsiag to? Cov lus teb tam sim ntawd txiav koj txoj kev kuaj mob hauv ib nrab.

Ib "nias" txhais tau hais tias lub relay tswj Circuit Court yuav ua haujlwm. Qhov teeb meem yog nyob rau hauv lub hwj chim Circuit Court. Silence txhais tau hais tias tus relay tseem tsis tau hais kom qhib. Qhov teeb meem yog nyob rau hauv kev tswj Circuit Court.

Diagnostic Flowchart

Ua raws li qhov kev xav tau no mus rau qhov systematically nrhiav qhov tsis ua haujlwm.

Cov tsos mob A: Tsis muaj "nias" los ntawmrelay, accessory tuag.

Qhov no qhia rau koj tias lub relay lub kauj tsis tau energized. Qhov txhaum yog nyob rau hauv kev tswj Circuit Court.

Txheeb xyuas lub fuse rau qhov hloov pauv ntawm nws tus kheej, yog tias nws muaj.

Siv lub multimeter kom paub meej tias 12V + tau txais mus rau koj lub dashboard hloov.

Nrog rau qhov hloov pauv, kos rau 12V + ntawm lub relay tus taw tes tawm tswv yim (Pin 86) hauv lub thawv fuse. Yog tias tsis muaj lub zog ntawm no, cov xaim ntawm qhov hloov pauv thiab lub thawv yog faulty.

Yog hais tias lub zog muaj nyob ntawm tus txhais, xyuas cov relay lub coil hauv av (Pin 85). Siv lub multimeter los xyuas qhov txuas ntxiv ntawm tus pin no thiab lub chassis hauv av. Ib qho av tsis zoo yuav tiv thaiv lub kauj ntawm lub zog.

Cov tsos mob B: Koj hnov ​​​​ib "nias" los ntawmrelay, tab sis cov khoom siv tau tuag.

Nov yog xov xwm zoo heev. Nws txhais tau hais tias koj qhov hloov pauv, tswj kev xaim, thiab lub relay lub kauj yog txhua yam ua haujlwm. Qhov txhaum yog nyob rau hauv siab - tam sim no fais fab tuag Circuit Court.

Pom pom lub ntsiab fuse rau qhov Circuit Court hauv 12V relay thiab lub thawv fuse. Qhov no yog qhov feem ntau culprit. Ib tug tawg filament yog ib tug ntshiab kos npe rau.

Yog tias lub fuse zoo nkaus li zoo, siv multimeter kom paub meej tias muaj 12V + ntawm relay lub ntsiab fais fab input (Pin 30). Yog tsis yog, lub ntsiab fais fab pub rau lub thawv yog faulty.

Nrog rau kev hloov pauv (thiab nyem rau ntawm relay), kos rau 12V + ntawm lub relay cov zis davhlau ya nyob twg (Pin 87). Yog tias koj muaj hwj chim ntawm Pin 30 tab sis tsis nyob ntawm Pin 87, tus relay nws tus kheej tau ua tsis tiav nyob rau hauv.

Yog tias lub zog muaj nyob ntawm Pin 87, qhov txhaum yog nqes. Qhov teeb meem yog nyob rau hauv kev sib txuas ntawm lub thawv fuse thiab cov khoom siv, cov khoom siv hauv av sib txuas, lossis cov khoom siv nws tus kheej.

Txhais qhov Failure

Nkag siab qhov sib txawv ntawm lub tshuab fuse thiab lub relay ua tsis tiav yog qhov tseem ceeb rau kev txhim kho mus tas li. Ib qho yog ib qho tsos mob. Lwm qhov yog lub hauv paus.

Siv lub Fuse Box Diagram

Qhov no yog qhov uas koj mob siab rau hauv daim ntawv lo them tawm. Daim duab lossis daim ntawv lo ntawm lub hau ntawm koj lub hauv paus hluav taws xob yog koj daim ntawv qhia.

Thaum lub voj voog tsis ua haujlwm, daim ntawv qhia no tso cai rau koj tam sim ntawd txheeb xyuas cov fuse thiab relay los kuaj. Nws tshem tawm kev kwv yees. Koj tuaj yeem txav mus ncaj qha mus rau cov kauj ruam kev kuaj mob. Qhov no txuag lub sijhawm thiab kev ntxhov siab.

Xaus: Fais fab koj qhov project

Kev sib raug zoo ntawm 12V relay thiab lub fuse yog zoo meej symbiosis. Nws muab kev tswj hwm thiab kev tiv thaiv. Lub relay ua raws li qhov hnyav -lifting hloov. Lub fuse sawv tiv thaiv, kom ntseeg tau tias txhua qhov kev ua tau ua tiav zoo.

Los ntawm kev nkag siab txog qhov kev sib koom tes no, koj tuaj yeem txav mus dhau ntawm kev xaim yooj yim. Koj tuaj yeem pib engineering robust, txhim khu kev qha hluav taws xob tshuab.

Niaj hnub no 12V relay thiab fuse lub thawv yog ib qho kev hloov pauv. Nws coj kev txiav txim, kev nyab xeeb, thiab kev tshaj lij rau txhua qhov haujlwm. Nws ua kom yooj yim rau kev xaim, nruab nrab kev saib xyuas, thiab muab lub hauv paus loj tuaj yeem nthuav dav rau yav tom ntej.

Nrog rau qhov kev paub no, koj tau nruab rau lub zog koj cov haujlwm nrog kev ntseeg siab. Koj tuaj yeem tsim cov tshuab hluav taws xob uas tsis yog tsuas yog ua haujlwm xwb tab sis kuj muaj kev nyab xeeb thiab tsim kom kav ntev.
